I-69 and 106th Street Interchange

by BridgesFeatured ProjectsLand AcquisitionPortfolioSurveyingTransportation

I-69 and 106th Street Interchange

image-62
image-61
image-60
image-59
image-58
image-57
image-56
image-55

I-69 and 106th Street Interchange

Client

Indiana Department of Transportation(INDOT)

Follow Us On

Facebook-f Youtube Linkedin-in

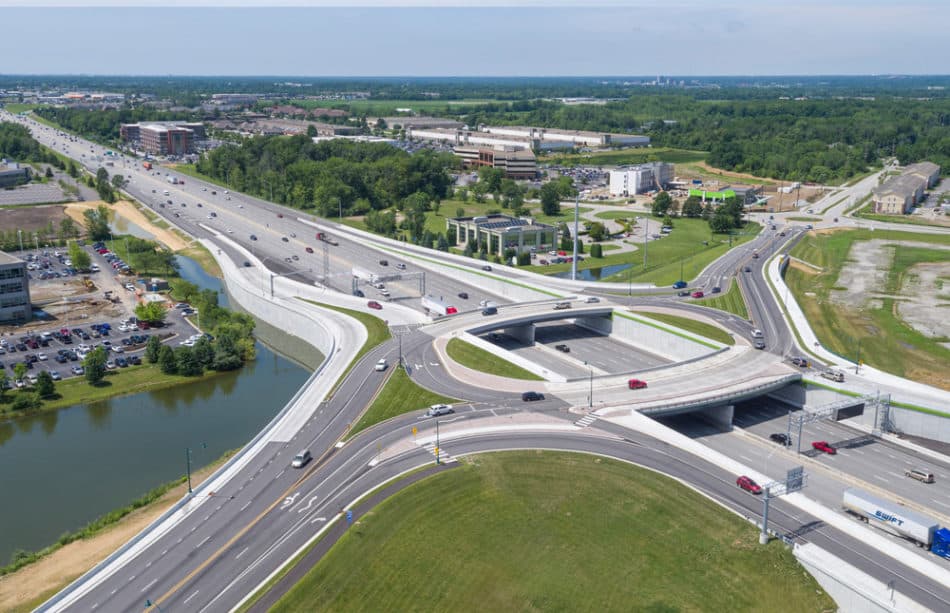

Project Description:  This multi-agency project with INDOT, City of Fishers, and Hamilton County provided a new interchange on I-69 at 106th street that has served as a catalyst for economic development while reducing congestion along the busy I-69 corridor. The purpose of the project was to create a new access point to I-69 and improve the traffic operations of the adjacent interchanges at 96th Street and 116th Street. United was selected and worked through the evaluation of the different interchange alternatives. The chosen alternative for the interchange featured a two-lane, oval-shaped roundabout on 106th Street over I-69 including ramps to and from both directions of the interstate. Two separate two-lane bridges carry one direction of traffic. The westbound traffic bridge on the north side of 106th Street was also designed to accommodate pedestrians.

Approximate Construction Cost:  $21,000,000

Breadth of Services Provided: Traffic Counting, Traffic Analysis, Road Design, Bridge Design, Hydraulics, Pavement Design, Utility Coordination, Regulatory Permits, Right-of-Way Engineering, and Land Acquisition

image-188

Hartford City Commissioners Drain Project

by PortfolioSurveyingWater / Wastewater

Hartford City Commissioners Drain Project

image-188
image-187
image-186

Hartford City Commissioners Drain Project

Client

City of Hartford City, Indiana

Follow Us On

Facebook-f Youtube Linkedin-in

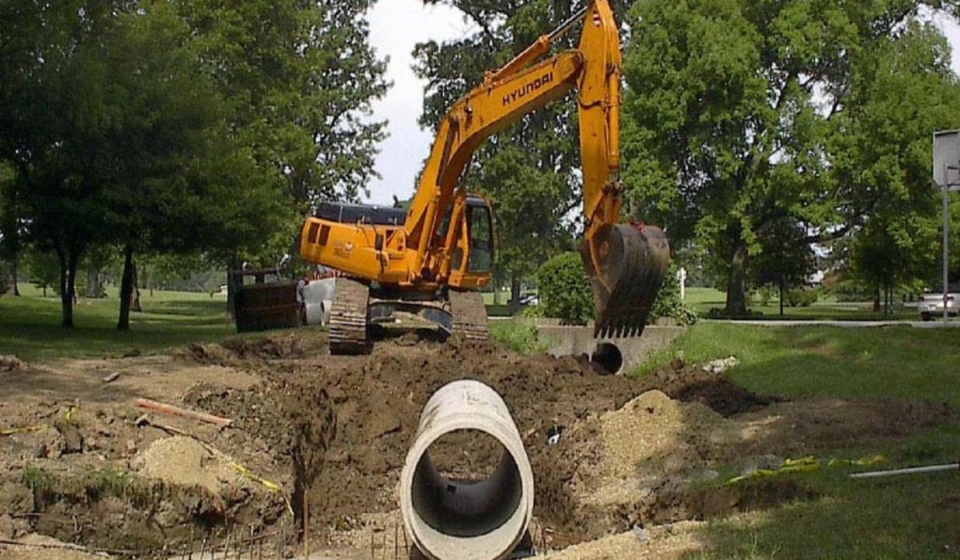

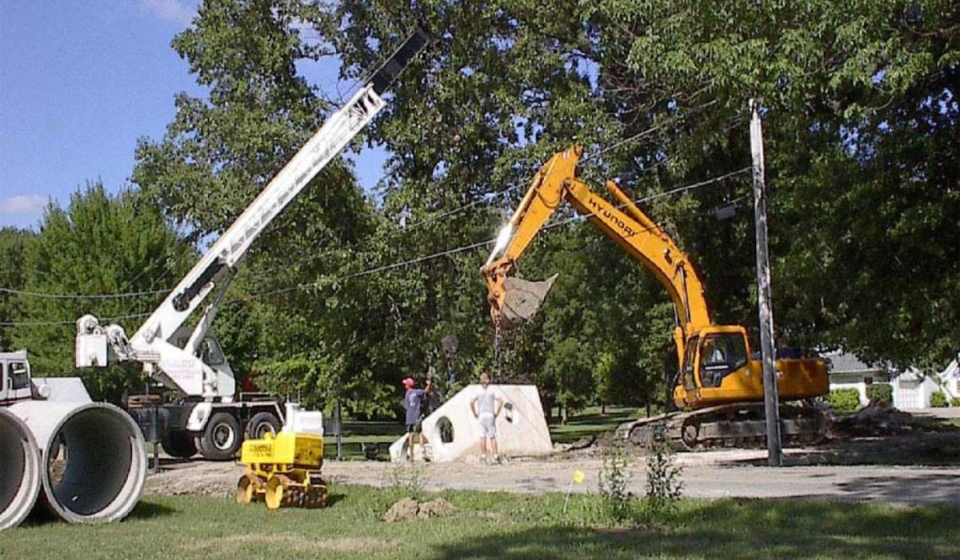

Project Description:  Project included complete separation of the sanitary/storm systems, new sanitary sewers and storm sewers.  A CSO was eliminated from the system by this project.

Approximate Project Cost:  $1,400,000

Breadth of Services Provided:  Survey, Design Engineering, Permitting, and Construction Inspection

image-183

Evansville Eastview Terrace

by Construction InspectionPortfolioSurveyingWater / Wastewater

Evansville Eastview Terrace

image-185
image-184
image-183
image-182

Evansville Eastview Terrace

Client

City of Evansville, Indiana

Follow Us On

Facebook-f Youtube Linkedin-in

Project Description:  The project includes approximately 6,500 feet of 48-inch to 96-inch storm sewer to address flooding issues in the Eastview Terrace neighborhood and 3,800 LF of water main relocation.  The proposed storm sewer will discharge to the existing K-3 Lift Station ponding area and includes coordination and permitting with the U.S. Army Corps of Engineers.  The project design included development of a SWMM model used to size the proposed storm sewer and evaluate the operation of the proposed system under various design storms.

Approximate Project Cost:  $5,600,000

Breadth of Services Provided:  Study & Evaluation, Survey, Design Engineering, Water Main Relocation, Permitting, Bid Assistance, and Construction Inspection

image-129

US 41 Stormwater Pump Station Project

by Land AcquisitionPortfolioSurveyingWater / Wastewater

US 41 Stormwater Pump Station Project

image-137
image-136
image-135
image-134
image-133
image-132
image-131
image-130
image-129

US 41 Stormwater Pump Station Project

Client

Indiana Department of Transportation

Follow Us On

Facebook-f Youtube Linkedin-in

Project Description: The project included construction of a 39 MGD stormwater pump station and approximately 700 feet of 48-inch force main. The pump station included a new cast-in-place concrete structure, masonry control building, submersible pumps with VFD controls, screen structure, influent gate controls, and cast-in-place gatewell/energy dissipation structure at the levee force main discharge location as permitted by the USACE.

Approximate Construction Cost: $3,600,000

Breadth of Services Provided: Survey, Planning, Design Engineering, Permitting, Land Acquisition, Construction Assistance

image-128

Terre Haute Lost Creek Lift Station Project

by Construction InspectionLand AcquisitionPortfolioSurveyingWater / Wastewater

Terre Haute Lost Creek Lift Station Project

image-128
image-127
image-126
SANYO DIGITAL CAMERA
SANYO DIGITAL CAMERA
image-121
image-122
image-124
image-123

Terre Haute Lost Creek Lift Station Project

Client

City of Terre Haute

Follow Us On

Facebook-f Youtube Linkedin-in

Project Description: The project included construction of a 22 MGD sanitary lift station and approximately 320 feet of 30-inch force main to replace the existing lift station on the same site. The new lift station featured a cast-in-place concrete screen channel, wet-well, valve vault, masonry building, submersible pumps with VFD controls, dual channel mechanical screen equipment, equipment hoist, diesel generator, site lighting, and various site improvements. The project also included stream bank and channel stabilization along the perimeter of the site and demolition of the existing lift station to allow space for additional site improvements.

Approximate Construction Cost: $5,500,000

Breadth of Services Provided: Survey, Land Acquisition, Design Engineering, Permitting, Construction Administration

image-108

Wabash County Bridge No. 645

by BridgesLand AcquisitionPortfolioSurveyingTransportation

Wabash County Bridge No. 645

image-109
image-108
image-107
image-106
image-105

Wabash County Bridge No. 645

Client

Wabash County

Follow Us On

Facebook-f Youtube Linkedin-in

Project Description: Rehabilitation of the existing historic timber covered bridge in North Manchester, Indiana. The construction involved temporarily supporting the bridge while members of the timber trusses were removed and replaced or repaired.  The existing members had to be inspected to determine if they could be reused or if they needed to be replaced. Replaced members had to closely match the original look of the timber bridge for historic purposes. A new timber shake roof was placed, the siding repaired and repainted, and the bridge was re-leveled to its original appearance. At completion, the bridge reopened to both pedestrian and vehicular traffic.

Steve Olsen of North Manchester Real Time Photography documented  the bridge’s rehabilitation in the following video.

image-99

Madison County Bridge No. 123 / 600 W over White River

by BridgesLand AcquisitionPortfolioSurveyingTransportation

Madison County Bridge No. 123 / 600 W over White River

image-104
image-103
image-102
image-101
image-100
image-99

Madison County Bridge No. 123 / 600 W over White River

Client

Madison County

Follow Us On

Facebook-f Youtube Linkedin-in

Project Description: Madison County Bridge No. 123 carries CR 600 West over the White River in Madison County. The structure is a four-span, continuous variable depth concrete girder with simple span concrete end-spans. The rehabilitation project included a complete deck replacement and reconstruction of the end-spans with prestressed concrete I-beams making them continuous with the existing historic concrete girders.

United developed a design and construction method for this structure that allowed for the deck replacement without any temporary supports for the historic girders. The negative moment reinforcement in the deck was maintained over the girders and the new deck constructed above this reinforcement using a staged pour sequence to reduce construction loading. The design also eliminated two expansion joints by making the approach spans continuous with the main span. This eliminated on-going maintenance concerns for the County and significantly extended the useful service life of this structure. These unique design concepts saved the county in both construction cost and schedule.

Approximate Construction Cost: $1,200,000

Breadth of Services Provided: Design Survey, Roadway Design, Bridge Design, Scour Analysis, Right-of-Way Acquisition, and Environmental Coordination, and Report Preparation

image-97

US 231 Phase III – New Road Construction

by BridgesPortfolioSurveyingTransportation

US 231 Phase III – New Road Construction

image-98
image-97
image-96
image-95
image-94

US 231 Phase III – New Road Construction

Client

Indiana Department of Transportation (INDOT), Spencer County

Follow Us On

Facebook-f Youtube Linkedin-in

Project Description:  US 231 Phase III Project in Spencer County is comprised of new terrain freeway totaling 4.5 miles of four-lane divided roadway with a grass median and two bridges in Spencer County.  The project includes a railroad grade separation and a diamond interchange at SR 162.  The project traverses densely wooded new terrain with large elevation changes and strip pits from past mining activities.  Four local roads were relocated to maintain the limited access feature of the new US 231 freeway.

The project required extensive coordination with the INDOT Office of Geotechnical Engineering due to possible mine subsidence, ponds, and the types of soil identified in the soil boring including coal, shale, and sandstone.  The project bisects three local service roads, a railroad, and State Road 162.  Coordination with the local agencies, Hoosier Railroad identified solutions to minimize the new alignments impacts on the community.

The location control route survey and topographic survey included full ground survey on a terrain that included over 100 feet of elevation changes, ponds, and strip mines. The new alignment traversed land with elevation changes of more than 50 feet and was previously mined.  Mining operations created unique geotechnical challenges which were coordinated as the project encountered mine spoils and created ponds.

Approximate Project Cost:  $25,500,000

Breadth of Services Provided:  Topographic Survey, Regulatory Permit Applications,  Roadway Design, Bridge Design, Complex Sign Design, and Utility Coordination

image-93

Lost Creek Lift Station

by PortfolioSurveyingWater / Wastewater

Lost Creek Lift Station

image-93
image-92
image-91
image-90
image-89
SANYO DIGITAL CAMERA
SANYO DIGITAL CAMERA
image-86
image-85

Lost Creek Lift Station

Client

City of Terre Haute, Indiana

Follow Us On

Facebook-f Youtube Linkedin-in

Project Description:  The City’s existing lift station that conveyed wastewater for a large portion of the north side of Terre Haute was beyond its design life and in need of replacement.

United Consulting designed the new facility with a design capacity of 20 million gallons per day including a new, cast-in-place concrete structure, masonry building, submersible pumps with VFD controls, dual mechanical screen equipment, and other necessary improvements.

Approximate Project Cost:  $5,500,000

Breadth of Services Provided:  Survey, Land Acquisition, Design Engineering, Permitting, and Construction Administration

image-234

US 31 South Bend New Roadway, Marshall and St. Joseph Counties

by BridgesPortfolioSurveyingTransportation

US 31 South Bend New Roadway, Marshall and St. Joseph Counties

image-234
image-233
image-232

US 31 South Bend New Roadway, Marshall and St. Joseph Counties

Client

R.W. Armstrong Associates for Indiana Department of Transportation (INDOT)

Follow Us On

Facebook-f Youtube Linkedin-in

Project Description:  With the goal of reducing congestion and improving safety and mobility along the route, United completed preliminary and final design on 15 bridges for the upgrade and realignment of US 31 from US 30 in Plymouth to the US 20 bypass in South Bend.  These projects included multiple bridge types from single-span prestressed girders to a three-span steel plate girder structure with integral post-tensioned straddle bent pier caps at a single-point interchange.

United also completed the “Fast Track” rural five-mile Grading Contract and the more complex urban design in the northern two miles.  The six different urban Contracts included pavement reconstruction, retaining walls, local road improvements, bridge replacements, signing, signal design, and a single-point urban interchange.

This project is part of the larger Major Moves initiative to upgrade the route to freeway standards from Indianapolis to South Bend.

Approximate Project Cost:  $316,000,000

Breadth of Services Provided: Supplemental Topographic Survey, Roadway Design, Bridge Design, Regulatory Permit Acquisition, Utility Coordination, Right-of-Way Engineering and Right-of-Way Buying
